DJI Matrice 4E Plus Combo

DJI MATRICE 4 SERIES

Compact, multi-sensor, intelligent flagship drone

The era of intelligent flights

Introducing the DJI Matrice 4 Series, a new series of compact, intelligent, multi-sensor drones for the enterprise. The series includes the Matrice 4T and Matrice 4E, each equipped with advanced features such as intelligent sensing and laser rangefinder. Flight operations are now safer and more reliable, with significantly improved sensing capabilities. The Matrice 4 Series' accessories have also been significantly improved. The Matrice 4T is suitable for a wide range of industries, including energy, emergency response, public safety, and forest protection. The Matrice 4E is designed for geospatial applications such as surveying and mapping, construction, and mining. It heralds a new era in intelligent aerial operations.

Two models, countless applications

• Smart features
• Excellent performance in low-light environments
• Clear vision and stable images
• High-efficiency precision mapping
• Complete accessory update
• Greater safety in flight
• DJI Care Enterprise


Smart features

Smarter operations

The integrated model can detect vehicles, vessels, and subjects during search and rescue operations or routine flights. It also supports migration to other models, expanding its application scenarios. It also supports high-resolution grid photos and features powerful tracking capabilities.

Laser rangefinder, precise measurements

The laser rangefinder enables precise measurements in real time. With simple operations such as aiming, drawing lines, and calculating area, it can perform tasks such as marking the location of a target for inspection purposes or calculating the area of ​​a forest fire. Users can also share information with relevant personnel via QR code on DJI Pilot or FlightHub 2, improving collaboration and workflow efficiency.

Recording of the observation field

DJI Pilot 2 can highlight the center of the camera's frame and the observed terrain area. It can display the detected area on the map, simplifying patrol and rescue operations in mountainous areas without clear landmarks.

Efficient flight, intelligent features

Cruise

By activating the Cruise control mode, you can fly the drone in a specific direction without continuously pressing the control sticks, making long-distance flights easier.

FlyTo

In case of emergencies or disasters, the drone is able to automatically adjust its trajectory and flight speed based on the surrounding environment, managing to reach a pre-established position without manual adjustments.

Smart Track

The Smart Track function allows you to precisely locate a subject and automatically adjust the zoom, making it easy to switch between subjects. It can automatically reacquire a subject even if it is obscured for a short period of time.

THEN

The POI function enables constant 3D observation and modeling of buildings while flying over a predefined area, thus significantly improving the efficiency of fixed point observation and modeling tasks.

Excellent performance in low-light environments

Night Scene Mode

The Matrice 4 series has received a major upgrade in its night vision mode. Its color night vision now supports three modes and features two levels of noise reduction. Devices equipped with an IR cut filter and a NIR auxiliary light effortlessly overcome the challenges of darkness and ensure clear visibility of targets in search and rescue operations.

Smart low-light photos

The Matrice 4 series cameras feature wider apertures and intelligent low-light features, dramatically improving performance and making shooting in twilight and night easier.

NIR auxiliary light

The Matrice 4T features new NIR illumination hardware, allowing it to illuminate distances up to 100 meters. [4] It ensures clear visibility of objects in dark environments and is ideal for applications such as wildlife protection.

Thermal imaging

The Matrice 4T supports high-resolution infrared mode, providing images with resolutions up to 1280 × 1024. It also features ultra-high resolution, allowing it to reveal fine temperature details for various operations. Each device is calibrated for temperature accuracy and uses a built-in temperature sensor that provides real-time temperature measurements.

Fisheye omnidirectional detection in low light conditions[5]

The Matrice 4 Series features six high-definition fisheye vision sensors with low-light capabilities, significantly improving visual positioning and obstacle avoidance capabilities in low-light conditions. This enables automatic obstacle avoidance, intelligent path rerouting, and safe reentry into low-light urban environments.

Crystal-clear vision: Highlights details

Captures every detail from a distance

Enhanced medium telephoto

The Matrice 4 Series features a medium-range camera that extends its performance for medium-range inspection tasks. When inspecting power lines or bridges, it can identify screws and cracks at a distance of 10 meters and clearly read instrument data in substations. [6]

Super resolution telephoto lens

The Matrice 4 Series camera boasts significantly improved clarity, with a resolution of 48MP, and is capable of detecting extraordinary details from signals up to 250 meters away. [7] Additionally, the Matrice 4T features an IR-Cut filter to ensure uninterrupted operation day and night.

Close-up stabilization for telephoto images

Advanced telephoto stabilization keeps foreground subjects stable and clear when shooting telephoto at 10x zoom or higher. In scenarios such as public safety and inspection, subject details are clearly visible.

Electronic haze removal for unparalleled clarity

In smog or humid conditions, electronic dehazing provides three modes (low, medium and high) to improve the image clarity of the Matrice 4 series devices according to different operating environments and different needs.

Precision mapping, to save time and energy

Rapid shots with 0.5 second intervals

The Matrice 4E's wide-angle camera is capable of rapid shooting at 0.5-second intervals in both orthogonal and oblique photography modes, enabling high-speed aerial surveys from multiple angles. Additionally, the mapping flight speed can reach 21 meters per second,[8] significantly improving operational efficiency.

Multidirectional acquisition, multiplied efficiency

5-way oblique acquisition

The Matrice 4 series devices now feature the ability to capture images in 5 directions in oblique mode. The gimbal can intelligently rotate and shoot from multiple angles depending on the shooting area, resulting in more shots in a single flight than previous models [9] and significantly improving the efficiency of oblique photography with small drones.

Orthogonal acquisition in 3 directions [10]

The DJI Matrice 4E enables three-directional orthographic acquisition and allows lateral acquisition during orthographic imaging operations, thus reducing lateral overlap. In a single flight, mapping operations can cover an area of ​​2.8 square kilometers. [11] Additional elevation optimization flights are not required to achieve better altimetry accuracy. Combined with the new features of DJI Terra, reconstruction efficiency is further improved without compromising quality.

Smart 3D images, precision modeling

The DJI Matrice 4E supports Intelligent 3D Capture, which allows you to capture and create a rough model using the remote control. Based on the rough model, it can quickly generate precise mapping routes near the surface of a structure, perform detailed measurements, and model irregular buildings. It also allows you to display virtual routes in space and photos of waypoints for Intelligent 3D Capture, allowing you to assess the flight safety and coverage area of ​​specific routes.

Smart 3D Explore for modeling

The Matrice 4E can be paired with the Manifold 3 to enable Smart 3D Explore for modeling. Leveraging the powerful computing power of the Manifold 3, the system automatically plans safe flight paths within the object's surroundings and generates a rough 3D model that can be viewed in real time on the remote controller. This streamlines the short-range photogrammetry workflow and improves efficiency.

Distortion correction, accuracy improvement

Distortion Correction 2.0 corrects in-camera distortion with high accuracy and residual distortion of less than 2 pixels. [12] In all Matrice 4E devices, the wide-angle camera is factory calibrated and, when used in combination with DJI Terra, significantly improves reconstruction accuracy.

Automatic generation of reconnaissance reports

At the end of a mission, DJI Pilot 2 automatically generates a reconnaissance quality report. The report contains all key information, such as shooting points, RTK status, and photo parameters. If any anomalies are detected, additional photos can be taken on-site to avoid repeating the trip.

Flight safety, trouble-free operation

Integrated positioning, safe return to the starting position

The Matrice 4 series devices feature a built-in DJI RTK module that supports the extended L5 frequency band and features GNSS + Vision Positioning and navigation. The home position can be updated using vision positioning, allowing for rapid takeoff within 15 seconds. Even in the absence of GNSS signals, these devices can complete the return-to-home process, effectively overcoming signal interruptions and interference commonly encountered in urban environments.

Intelligent guidance, obstacle-free flights

When the DJI RC Plus 2 Enterprise remote controller is connected to the internet, the system can upload terrain elevation maps and preload detailed maps. This allows it to automatically plan a route to avoid obstacles, effectively managing scenarios such as night flying or flying through mountainous areas and ensuring safe flight operations. The drone is equipped with a 5-way vision system and downward vision, which helps provide complete visibility for greater safety.

A new video transmission standard

The O4 Enterprise video transmission system represents a new industry standard for the most critical environments. Thanks to the 8-antenna system in the Matrice 4 series and the high-gain antenna in the remote controller, a transmission range of up to 25 kilometers can be achieved. [13] Furthermore, the system improves image transmission with a download bandwidth of 20MB/s, more than double that of the Mavic 3 Enterprise series, thus ensuring more precise and stable images for upload paths and downloads. [13]

The Matrice 4 Series supports the optional use of a DJI Cellular Dongle 2 adapter. [14] Signal stability is further improved by using 4G image transmission and the aircraft's antennas in combination.

Accessory updates, a leap in performance [15]

Lighthouse with stabilized tracking

The DJI AL1 light is capable of illuminating subjects up to 100 meters away [16] and features two modes, always-on and strobe. Thanks to the gimbal, it is able to connect to and follow the camera's movements to ensure that the illuminated area is aligned with the camera's view. Additionally, the light is able to focus on a single subject and provide a wide field of view (FOV) illuminating large areas.

Real-time speaker

The DJI AS1 speaker features impressive sound power and a long range. It has a transmission range of up to 300 meters and can output a volume of up to 114 decibels at 1 meter away. [17] It supports recorded messages, media import, and text-to-speech conversion. [18] It also features a real-time transmission system and echo cancellation, [19] which improves the efficiency and flexibility of search and rescue operations in emergencies.

Integrated broadcasting and lighting

The beacon and speaker can work independently or together, to meet different operating scenarios.

High-precision D-RTK 3 multifunction station

The D-RTK 3 Multi-Function Station can serve as a base station to provide centimeter-level positioning for multiple drones simultaneously or extend the operating range of drones in Relay Station mode. Additionally, the new Rover Station mode, combined with the DJI Enterprise app and DJI Terra, offers a complete solution for high-precision aerial surveying applications to ensure safe and accurate operations.

* This feature is not available in countries or regions that do not support the 5 GHz frequency band. Please refer to local laws and regulations for more information.

DJI RC Plus 2 Enterprise

The DJI RC Plus 2 Enterprise remote controller features a new high-brightness display, ensuring clear visibility even in direct sunlight. The remote controller is IP54 rated and operates in temperatures ranging from -20°C to 50°C. It uses the O4 Enterprise video transmission system and features a series of built-in high-gain antennas for high performance. It also supports hybrid O4 Enterprise and 4G transmission solutions, ensuring stable and smooth video transmission in urban and mountainous environments.

DJI Cellular Dongle 2 [14]

The DJI Cellular Dongle 2 enables video transmission over a 4G network and can work in synergy with the O4 Enterprise video transmission system, thus ensuring flight safety even in complex environments. It also provides cellular network connectivity for the remote controller.

Software designed for industry

DJI Pilot 2

DJI Pilot 2's interface has been completely updated, featuring an intelligent, customizable toolbar and support for various flight route types. It also includes virtual space models and route preview functions,[22] to make operations more convenient and efficient. It can connect with FlightHub 2 to improve drone control operations and facilitate information sharing in the cloud, thus reducing the workload of front-line operators.

DJI FlightHub 2

DJI FlightHub 2 has been updated specifically for the Matrice 4 series aircraft to enable a range of flight route planning features, including remote takeoff and landing, 3D Smart Routes, and geometric and slope routing. Operators can simultaneously control the payload and aircraft with real-time flight control features. During multi-drone operations, operators can synchronize multiple live streams on a single screen, creating a new and efficient air-to-ground operational experience.

* Users who purchase Matrice 4 Series aircraft and initially connect to FlightHub 2 will receive dedicated live streaming minutes, map imagery allowances, and storage space.

DJI Terra

DJI Terra enables high-precision camera distortion correction for the Matrice 4E aircraft. It supports free offline PPK processing of visible-light images and allows importing D-RTK 3 data, resulting in improved reconstruction accuracy. The software provides extensive 2D, 3D, and point cloud models, suitable for various applications such as geographic information, emergency response, and construction planning.

* One-year DJI Terra license provided with the purchase of the Matrice 4E.

DJI Modify

DJI Modify allows you to intelligently modify 3D mesh and point cloud models. When paired with the Matrice 4 series and DJI Terra, it can create an integrated solution for aerial surveying, modeling, model repair, and sharing.

DTAT 3.0

Once you have completed your thermography operations [2] with the Matrice 4T, you can use the DTAT 3.0 thermal analysis tool to mark, analyze and process the images, identifying anomalous temperature spots.

DJI Care Enterprise Plus and Official Warranty Extension Service for the First Year [23]

DJI Care Enterprise Plus [24]

Complete protection | Professional quality guarantee | Exclusive service | Service begins with activation

Free repairs

Unlimited free repairs within the coverage limit.

Flyaway Coverage

Once a year, trouble-free operation

Coverage for the entire fleet

Shared coverage for maximum protection

Free shipping

Repairs with free postal delivery, extremely simple service

Warranty Extension Service
In addition to the official warranty, an additional 1-year extended warranty is provided. Key parts are covered by the official warranty, with support provided by our professional engineers.

TECHNICAL DATA SHEET >

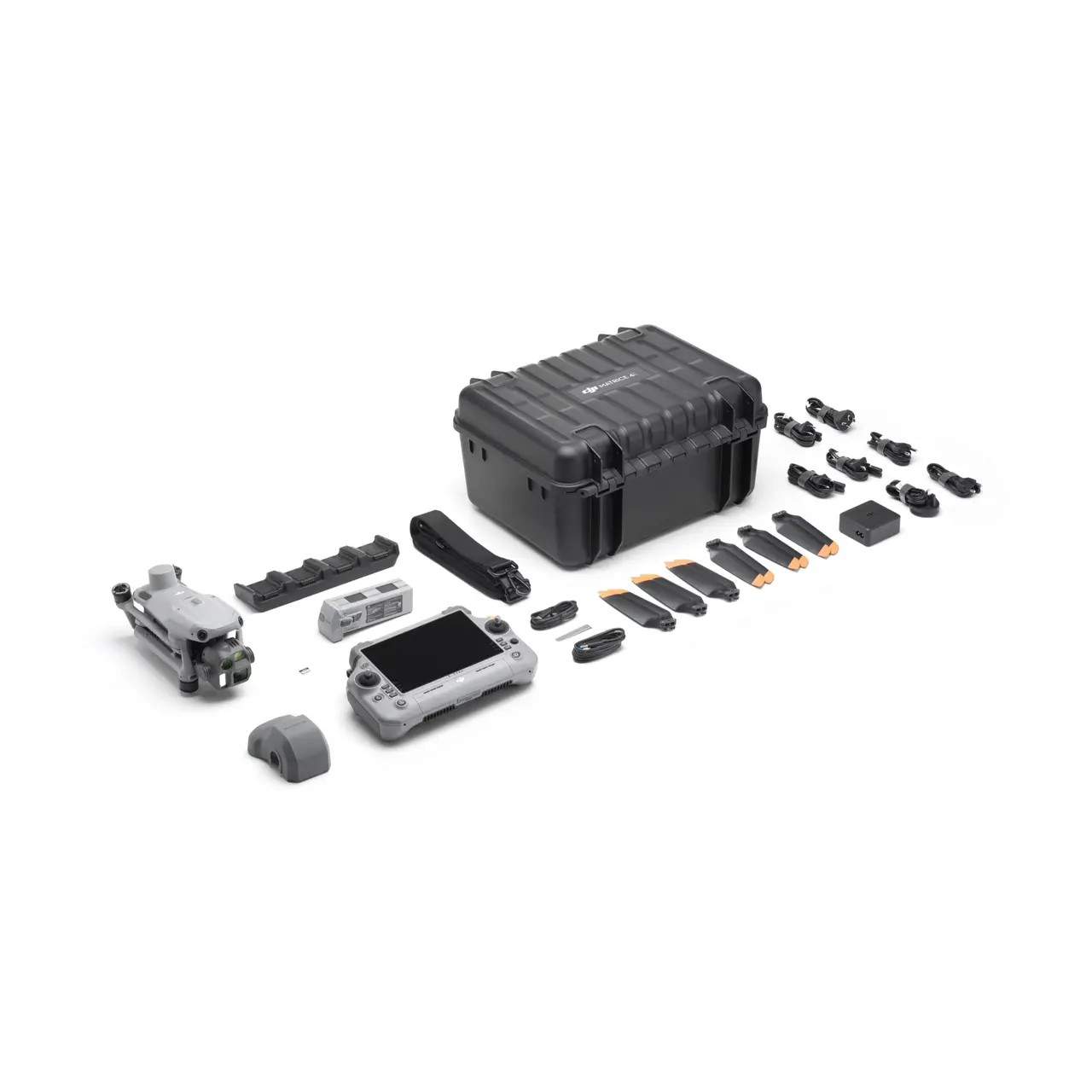

PACKAGE CONTENTS

• 1x DJI Matrice 4E
• 1x Battery for DJI Matrice 4 Series
• 1x DJI RC Plus 2 Enterprise

• 1x DJI 100W USB-C Power Adapter
• 1x Charging Hub for DJI Matrice 4 Series
• 1x microSD card
• 1x Stabilizer Guard for DJI Matrice 4E
• 1x DJI Cellular Dongle 2 Palanquin
• 3x Propellers for DJI Matrice 4 Series
• 1x 100W AC Power Adapter Cable
• 1x USB-C to USB-C data cable
• 1x USB-A to USB-C data cable
• 1x Carrying Case for DJI Matrice 4 Series
• 1x Shoulder Straps for DJI Matrice 4 Series Carrying Case


NOTE

* Tested with a production model of the DJI Matrice 4 Series indoors under favorable conditions and an unobstructed wireless signal. Actual results may vary depending on environment, usage, and firmware version.

** All videos and photos on this page were taken in strict compliance with local laws and regulations. Demonstrations, including wildlife, were shot and filmed from a safe distance and are for reference only. Please observe local laws and regulations and ensure your aircraft has obtained the relevant certifications before flying.

1. D indicates the measuring distance.

2. Available only with the Matrice 4T. DO NOT expose the infrared camera lens to a strong energy source such as the sun, lava, or laser beams. Doing so may burn out the camera sensor and cause permanent damage.

3. Available only with Matrice 4T. The NIR auxiliary light is suitable for the camera's lighting needs.

4. Measured when the drone is flying 100 meters above the ground, with the camera effectively capturing images.

5. Without installing the speaker or headlight accessories, obstacle avoidance remains active in urban nighttime lighting scenarios. Compared to the Mavic 3 Enterprise, it offers a longer operating life. The vision system cannot detect object surfaces without textures or with illumination below 0.5 lux. Please refer to the user manual for further information.

6. Measured under standard lighting conditions from a horizontal position 10 meters away from the subject, with a direct line of sight.

7. Shooting with the camera pointing directly at the subject.

8. Adjust the maximum horizontal speed to this value in Gain and Exposure Adjustment; this value was measured without any load, in a windless environment near sea level.

9. Data is significantly affected by the environment and performance may vary under different scenarios. Actual performance will vary depending on the actual product supplied.

10. Current functionality is insufficient to meet the needs of urban mapping. Future updates will continue to optimize flight paths and mapping solutions for urban areas.

11. At a 5 cm GSD, with a frontal overlap rate of 80%, a lateral overlap rate of 70%, and a flight speed of 15 m/s.

12. Manufacturing tolerances apply to individual drones. Data is provided for reference purposes only. For specific information, please refer to the actual product supplied.

13. Data measured in an open and interference-free environment.

14. Available for purchase separately. DJI Cellular Dongle 2 is not available in some countries and regions. Consult your local retailer for more details.

15. May be purchased separately. Installing accessories may affect the aircraft's obstacle avoidance performance. Follow the operating instructions.

16. For reference purposes only, this result is presented at a distance of one hundred meters from the subject.

17. Data was collected in a test environment with an ambient temperature of 25°C and is for illustrative purposes only. Actual conditions may vary slightly due to differences in software versions, audio sources, specific environments, and other factors. The final result depends on actual use.

18. The current text-to-speech feature only supports Mandarin Chinese and English.

19. You need to update to the latest firmware version.

20. The data is affected by the ambient temperature and in case of overheating, a reduction in power may occur.

21. Measured at 25°C ambient temperature, with charge from 0% to 100%.

22. Flight routes with Smart 3D imagery support this feature, but it is currently only available on Matrice 4E.

23. The service plan offered may vary by country or region. For more information, please consult your local authorized dealer.

24. Unlimited Free Repairs: Free repairs within the scope and amount of coverage; Free Shipping: Available in regions covered by DJI Care Enterprise. Additional costs, including logistics and customs, incurred outside the scope of coverage are the responsibility of the user; Flyaway Coverage: Flyaway coverage is available after linking your account and remote controller via DJI Pilot 2; Fleet Coverage: Shared coverage can be extended to other DJI Enterprise devices linked to DJI Care Enterprise Plus within the same period of time (30 calendar days) from initial activation and linking.

25. For specific parts, please refer to the DJI website - Support - After-Sales Service Policy.
