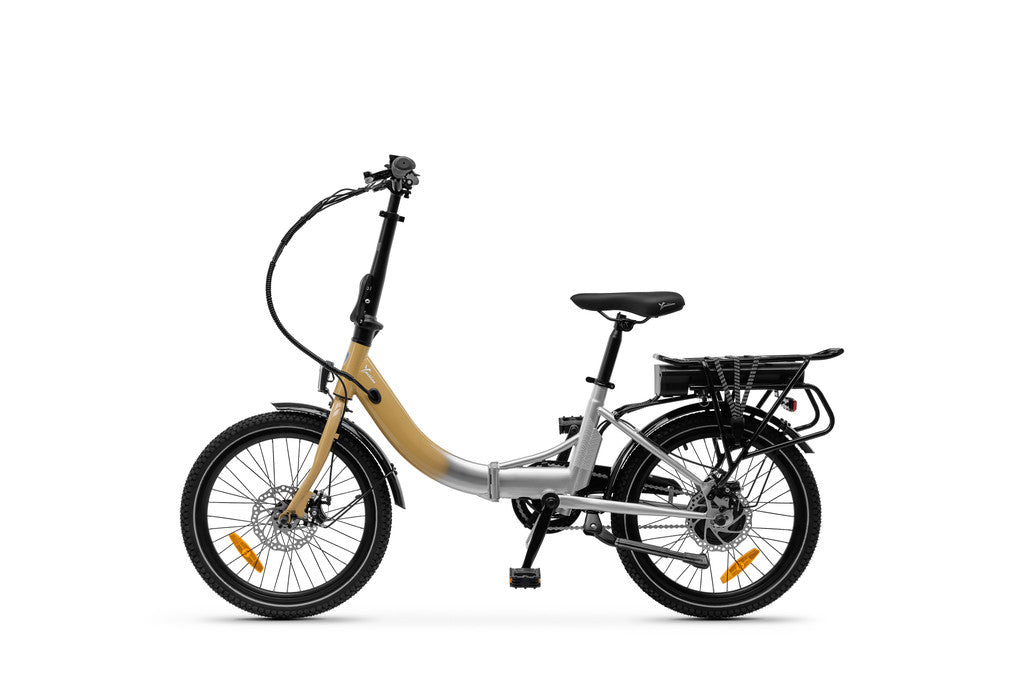

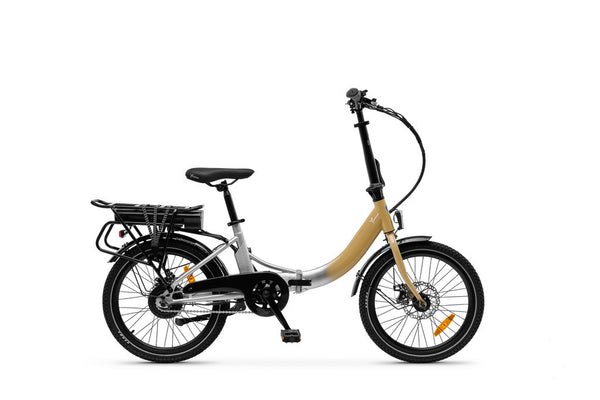

Ypsilon Brio

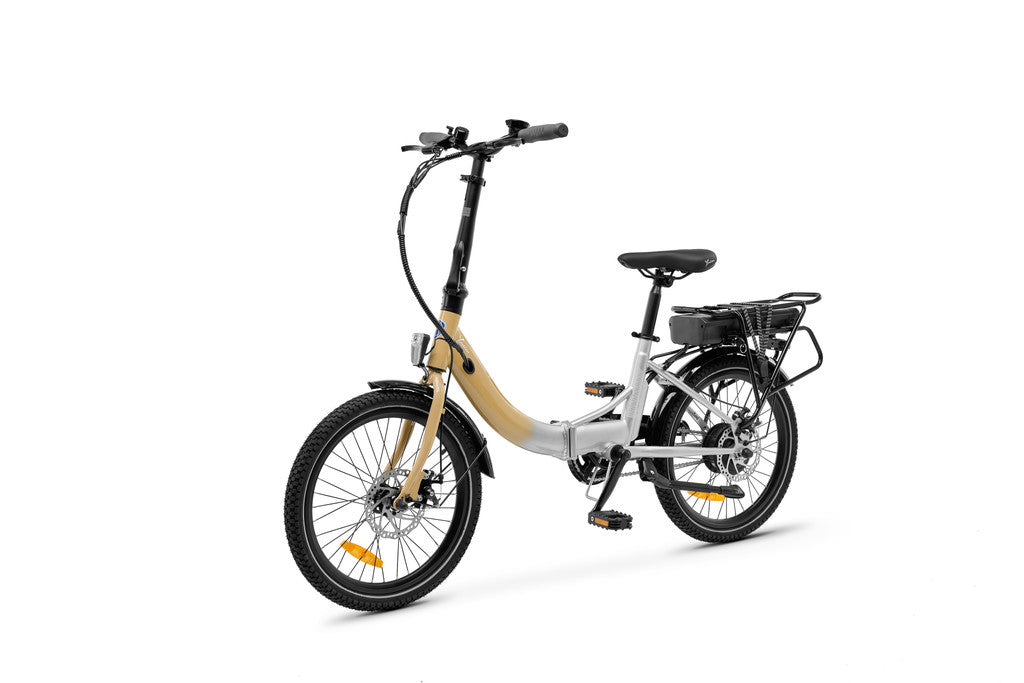

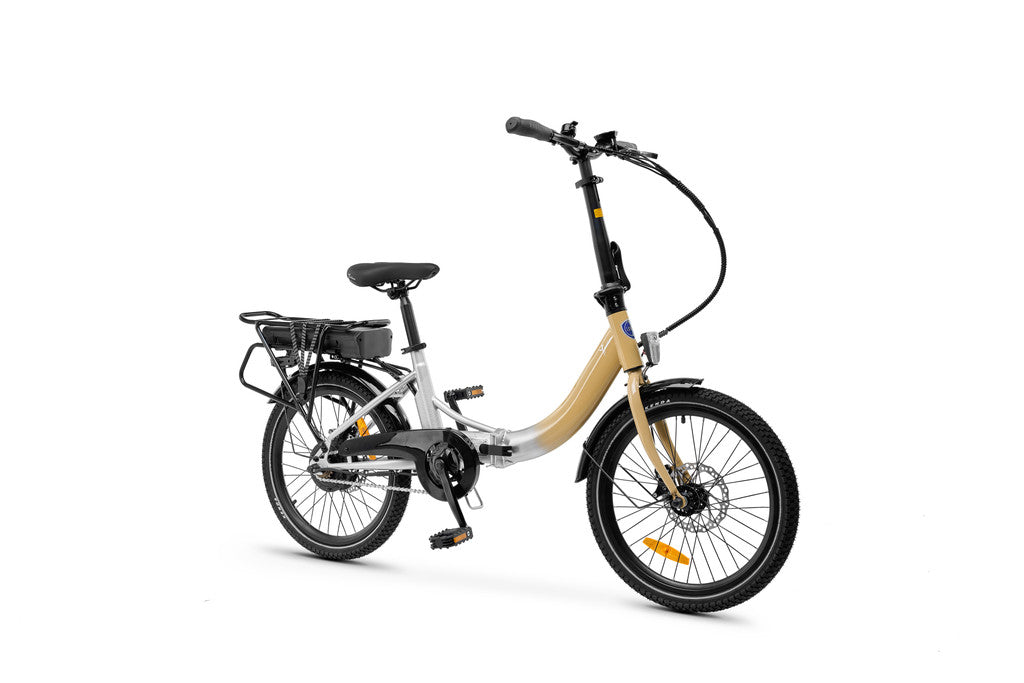

The Lancia Ypsilon Brio is a folding electric bike suitable for city use. Thanks to its compact size, 20" tires, and foldable aluminum frame, it's lightweight and can be easily transported in the included carry bag on public and private transportation. The 250W, 45Nm Bafang motor and removable 281Wh, 7.8Ah battery allow for a range of up to 60km. The front and rear mechanical disc brakes ensure safe stopping under all conditions.

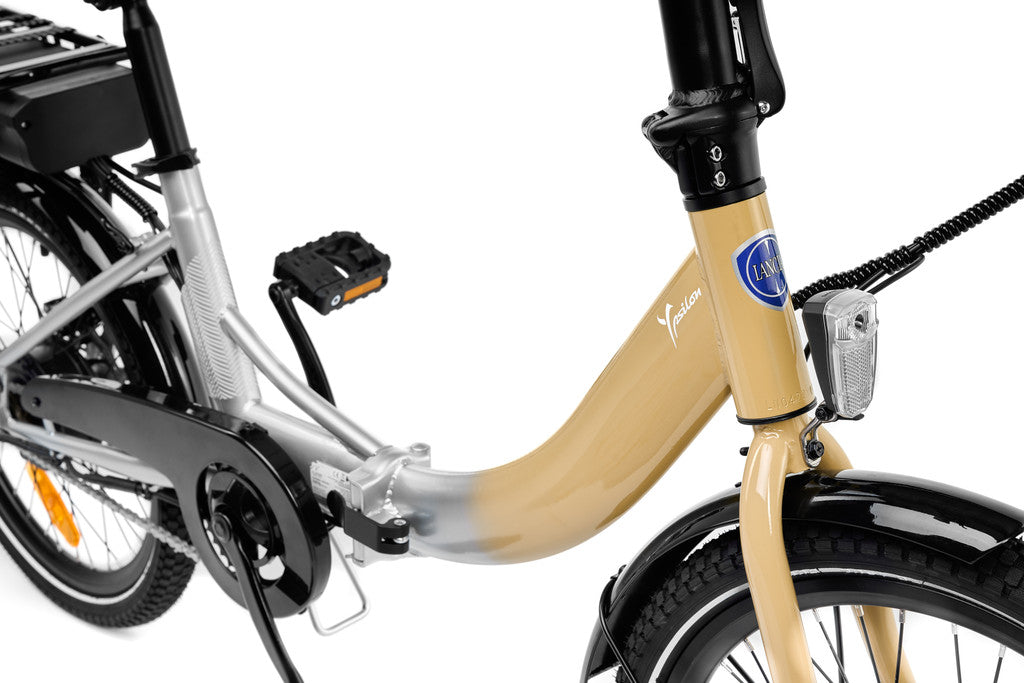

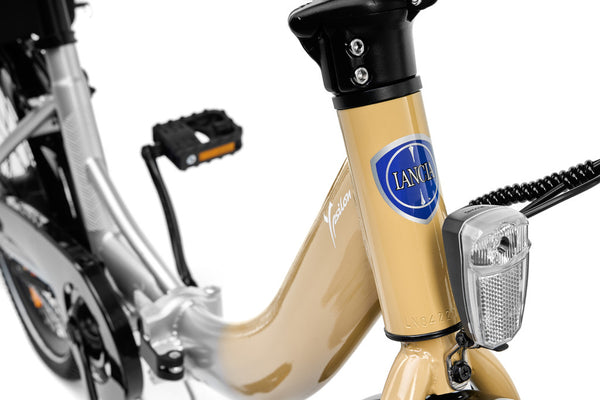

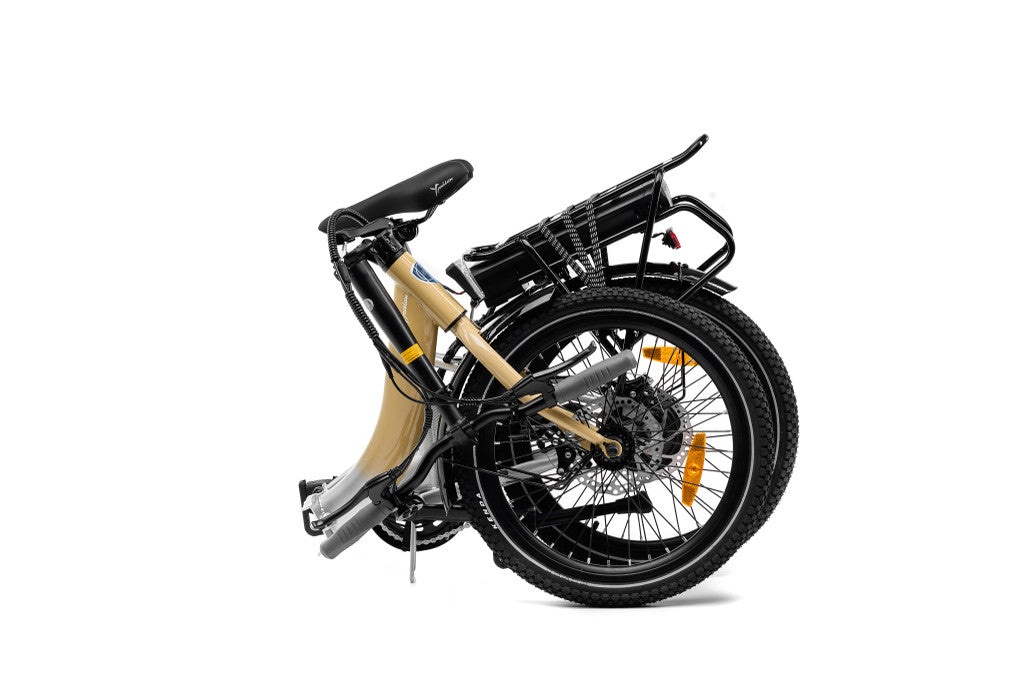

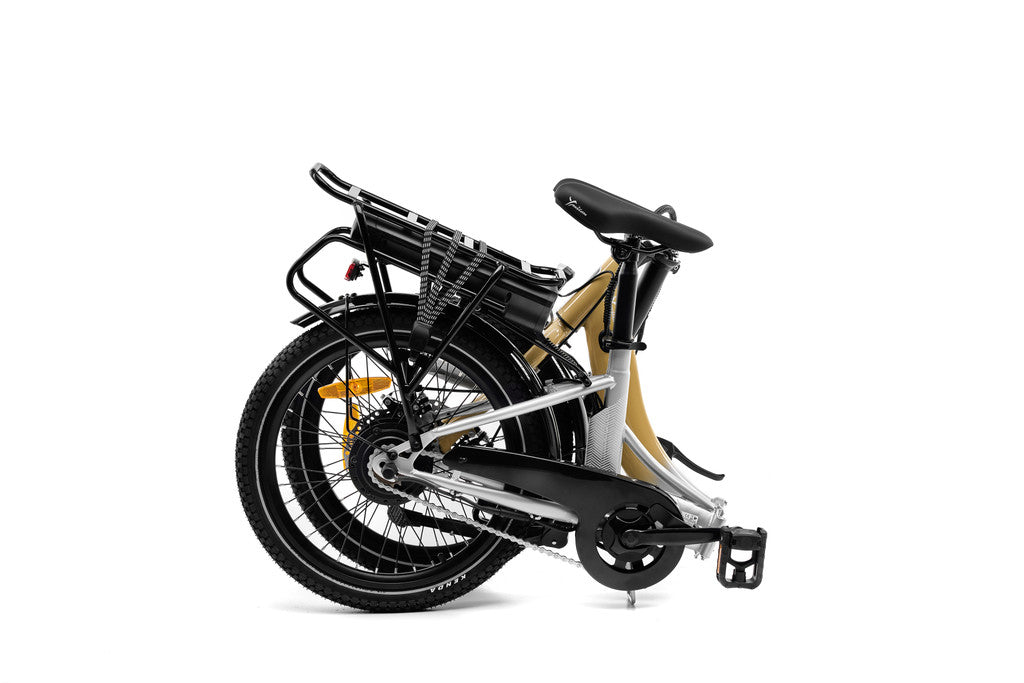

FOLDABLE FRAME AND EASY ACCESS
With a design that eliminates the top tube, this e-bike offers easy access and a comfortable riding experience for everyone. Plus, it offers maximum transport and storage flexibility thanks to the practical folding frame.

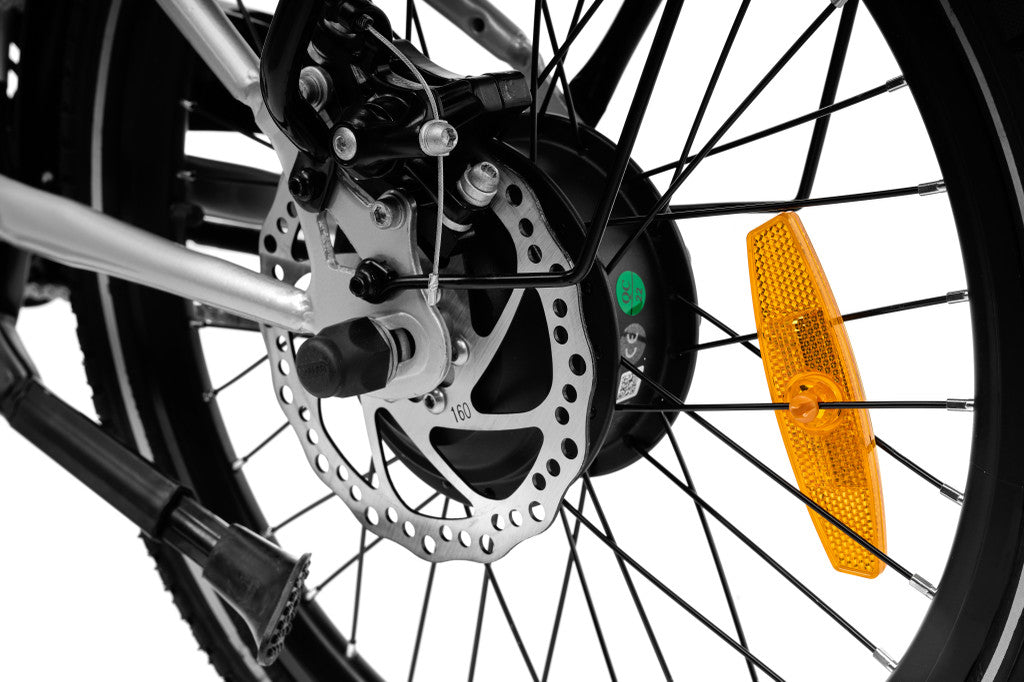

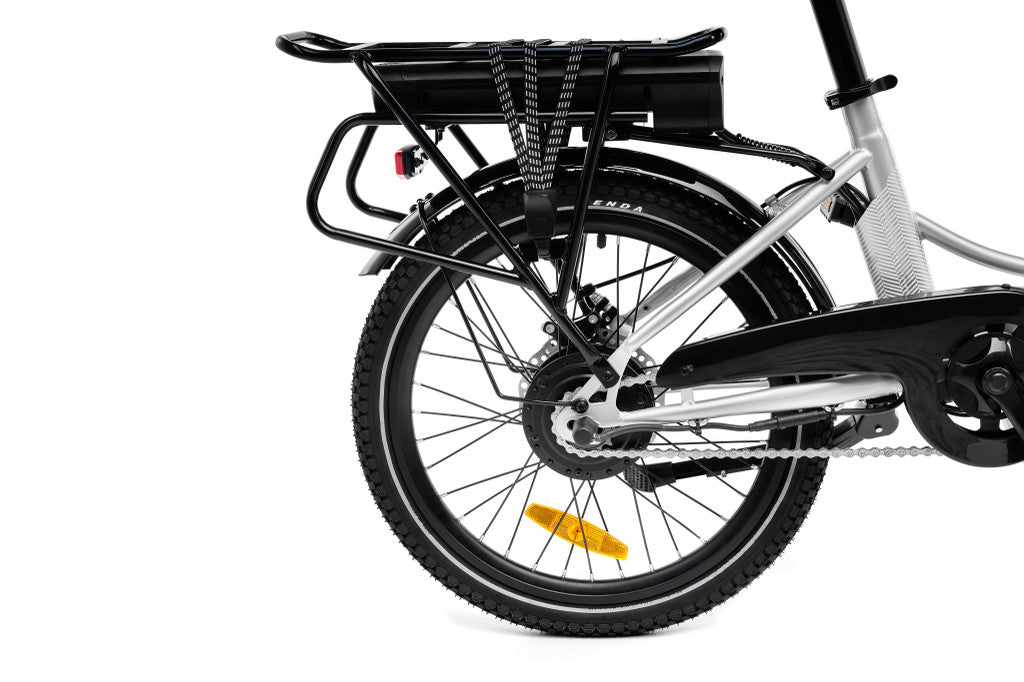

BAFANG REAR MOTOR 36V 250W 45NM
The 36V 250W Bafang motor gives this e-bike just the right amount of power to effortlessly conquer climbs and slopes. The gradual power delivery makes for a natural and smooth ride. Renowned for its reliability and versatility, this rear motor is perfect for city, trekking, and mountain e-bikes.

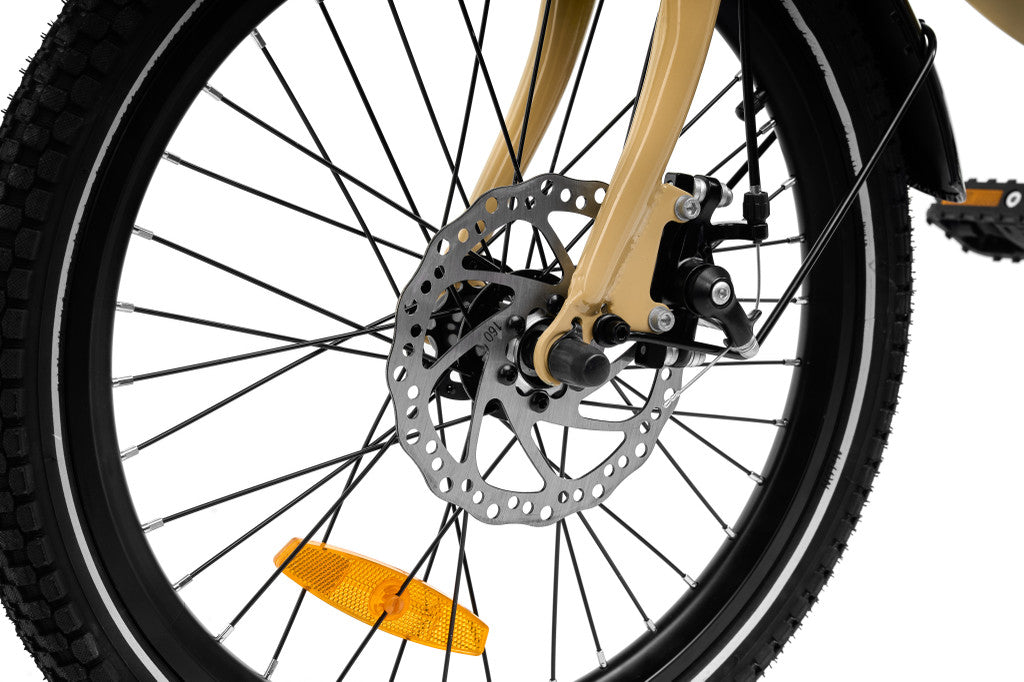

FRONT AND REAR MECHANICAL DISC BRAKES, CUT-OFF SENSOR

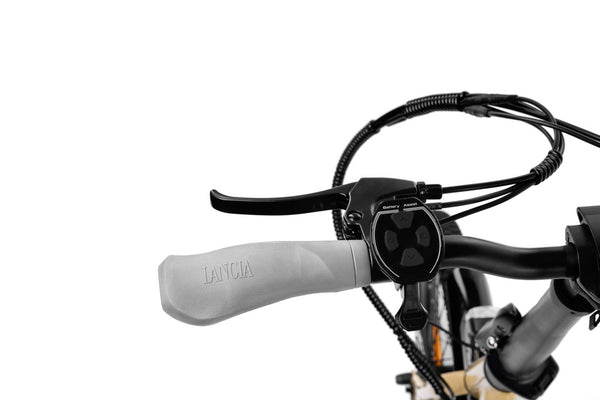

Braking is powerful and adjustable in all conditions with this e-bike, thanks to the front and rear mechanical disc brakes and the brake lever with cut-off sensor. The engine cut-off sensor ensures maximum safety, precise control, and a peaceful ride for every adventure.

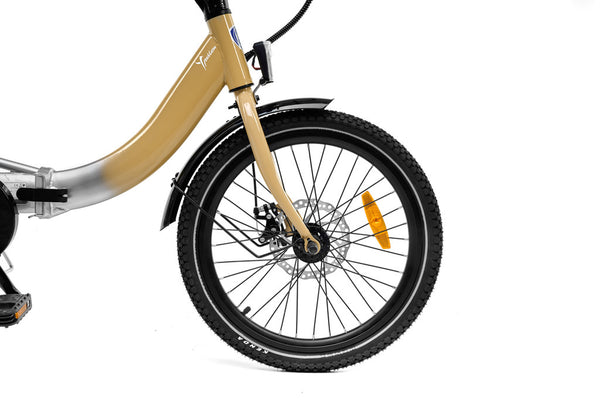

20" X 1.95" KENDA TIRES
Kenda's 20" x 1.95" e-bike tires are the perfect combination of agility and control. Their compact diameter ensures maneuverability in tight spaces, while their width provides stability and traction.

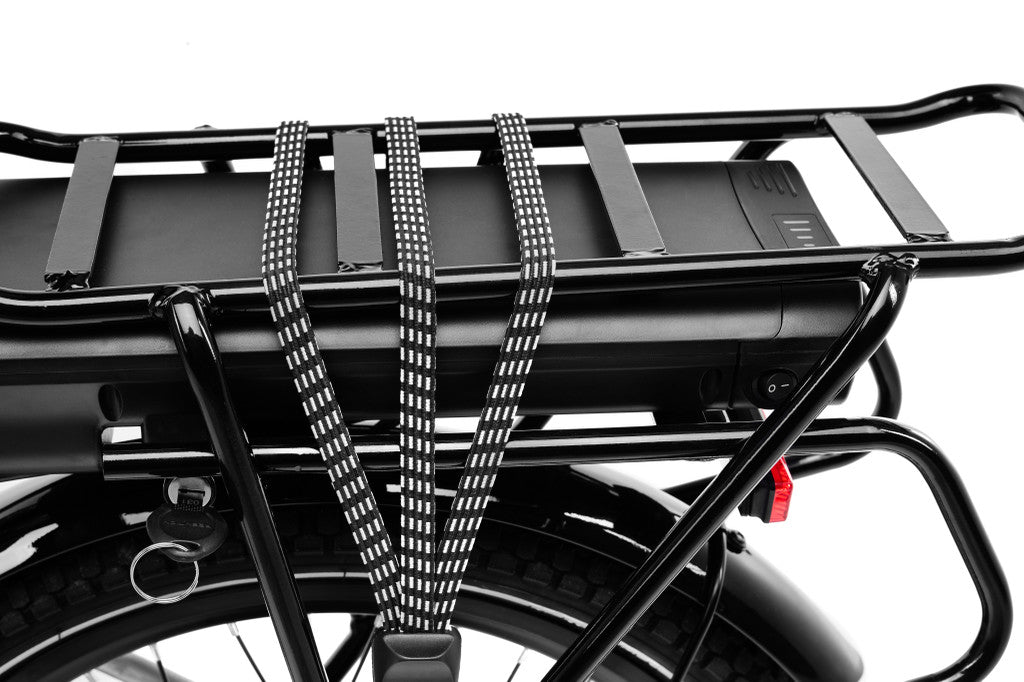

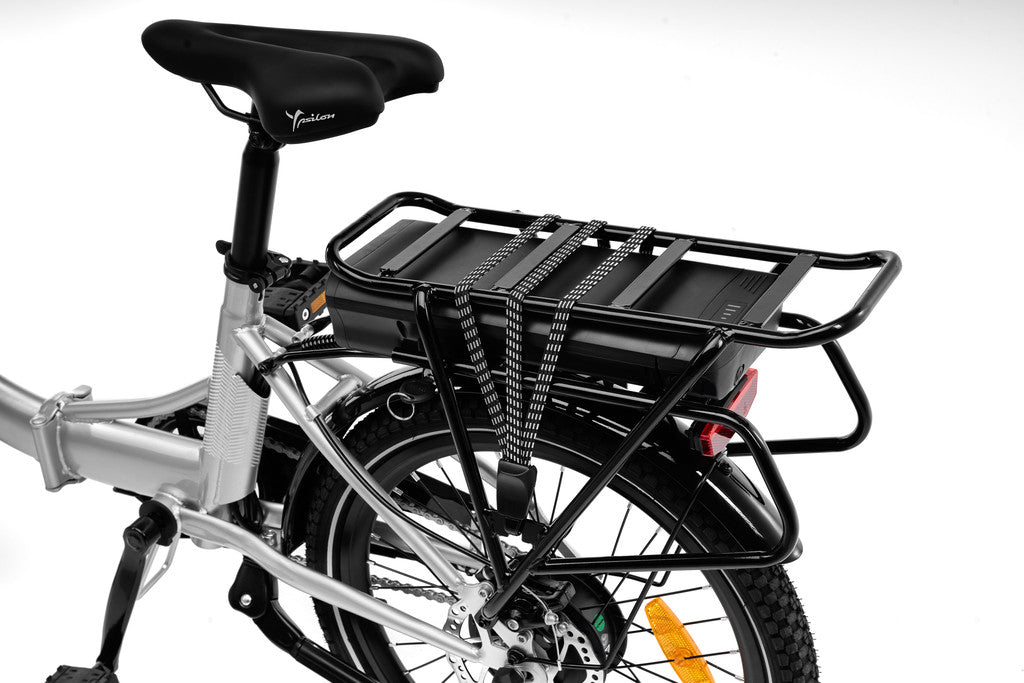

281 WH EXTERNAL BATTERY, UP TO 60 KM OF RANGE
Agility and practicality for urban electric mobility. This e-bike, equipped with a 281 Wh external battery, offers the perfect amount of energy for city commutes and easy out-of-town trips, up to 60 km on a single charge. Its compactness and light weight make it ideal for everyday use where practicality and maneuverability are essential. The external battery makes charging easy, allowing you to do so anywhere by simply plugging it into a power outlet.
TECHNICAL DATA SHEET
| Chassis | Aluminum alloy, foldable and low step |
| Front fork | Rigid, LT |
| Rear shock absorber | N/A |
| Handlebar | Made of aluminum, telescopic and foldable column |
| Tires | 20" x 1.95", inner tube, urban |
| Mudguards | Made of aluminum with supports, black/black color |
| Brakes | Mechanical Disc, 160 / 160, Logan LB-DX2016 |

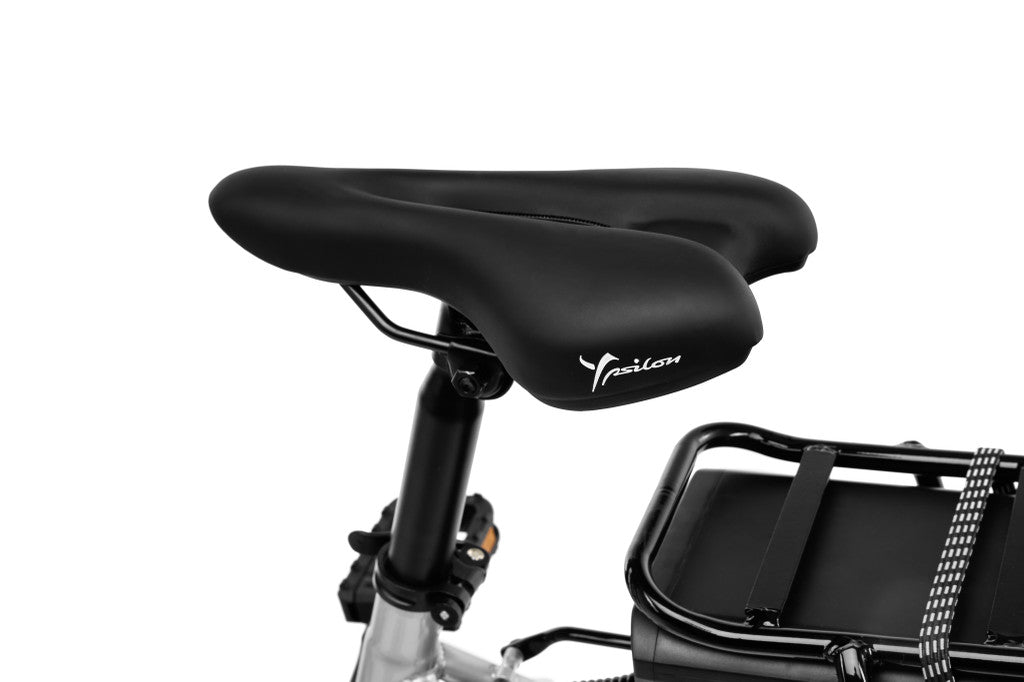

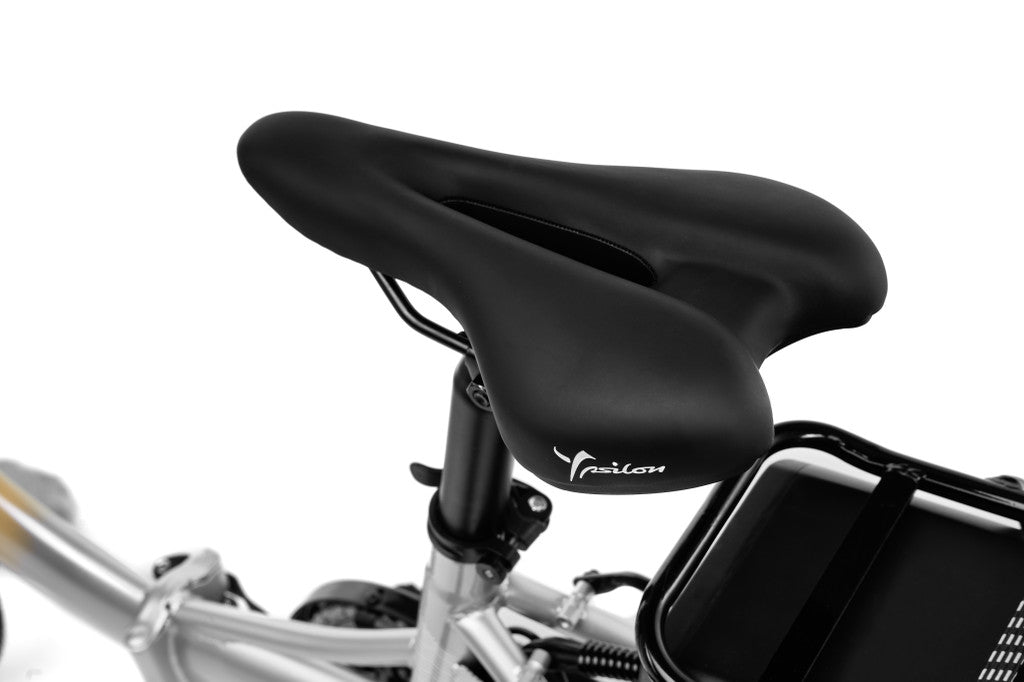

| Saddle and seat post | CY saddle, Ypsilon logo, black color, steel seat post |

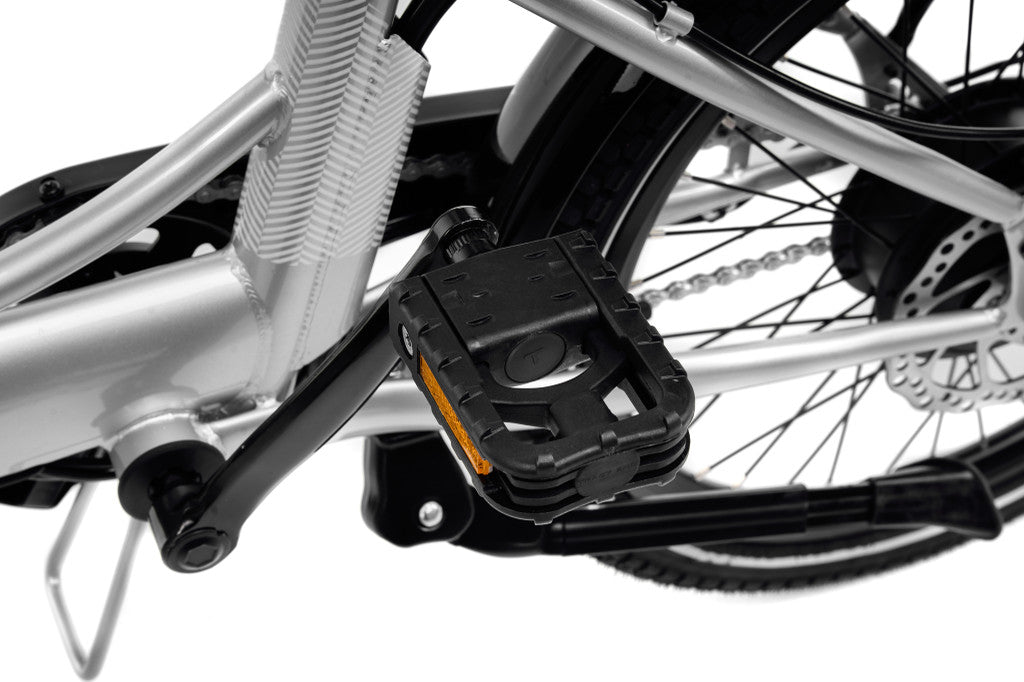

| Transmission | Crankset 1x1 - 16T SXH 38T - 170mm, LX chain |
| Gear | 1-speed |
| Motor | Rear, 250W, 36V, 45Nm, Bafang |
| Battery | External Li-Ion, 36 V, 7.8 Ah, 281 Wh |
| Battery charger | Output DC 42V, 2.0A (Max) |
| Charging time | 3-5 h |
| Autonomy* | Min/Max 35 - 60 Km |

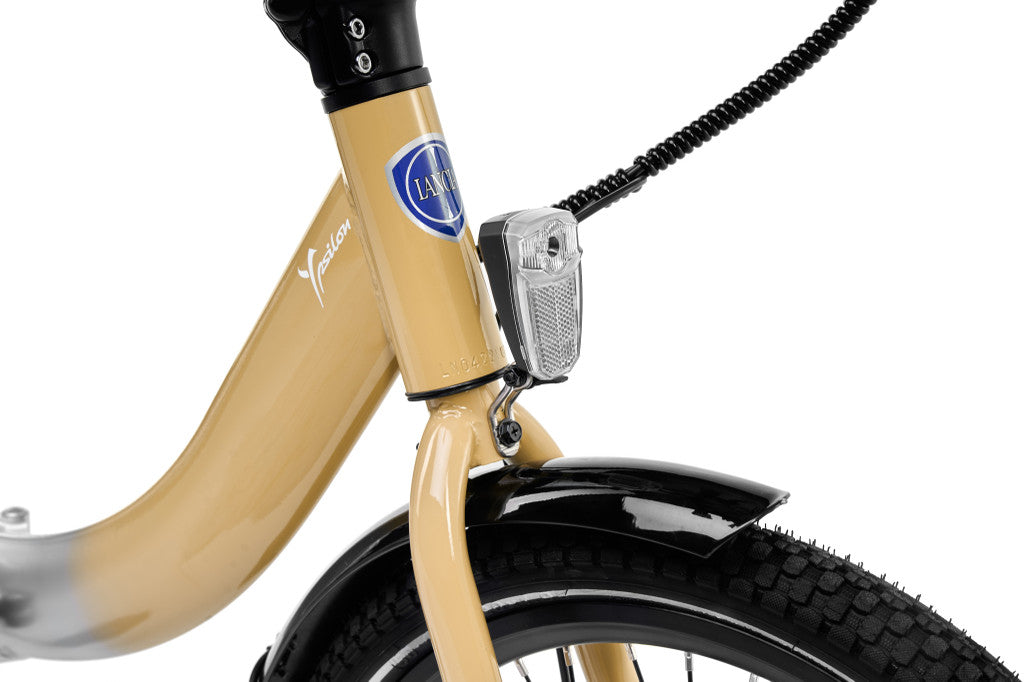

| Lights | LED |

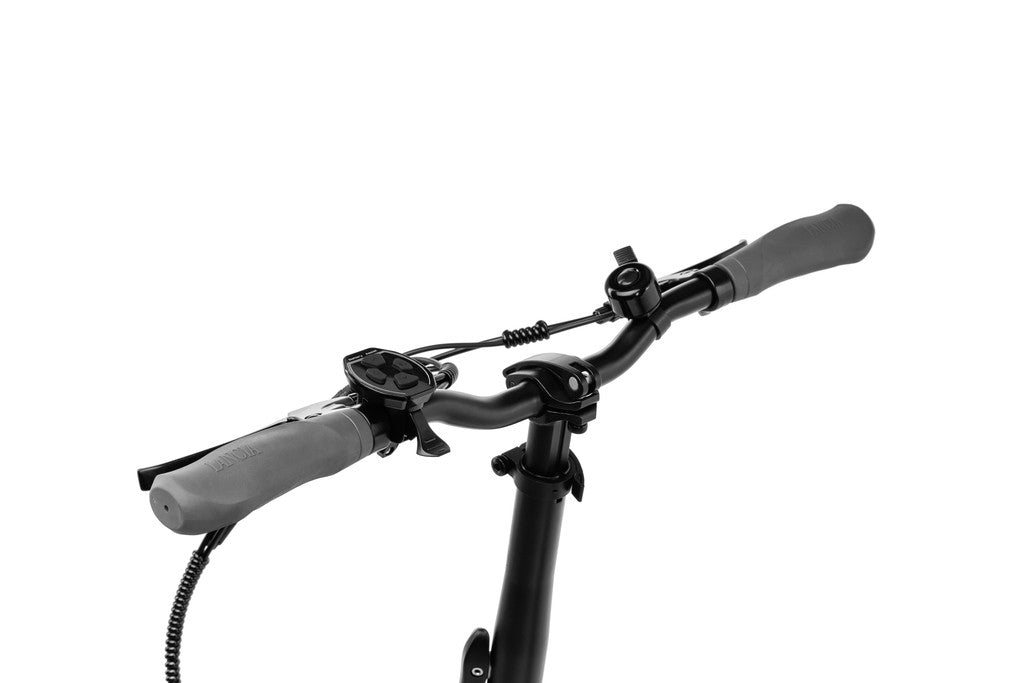

| Display | LED, Platum mod. CDE9-BT with 5 levels of assistance |
| Easel | Rear lateral, adjustable |
| Luggage rack | Rear, max load 25 kg |
| Maximum supported weight | 100 kg |
| Maximum speed | 25 km/h |
| E-Bike Weight | 23.1 kg |
| Battery weight | 2 kg |
| Product dimensions open/closed (WXHXD) | 1520*980*580 / 840*730*380 mm |
| Packaging Dimensions | 810*760*390 mm |
| Packaging weight | 29.9 kg |
| Accessories | Rear rack |
| Assembled in | N/A |
- Subject to change based on driver weight, road conditions, and temperature. Always comply with the Highway Code and applicable regulations in the country where you are driving.
- Electrical and electronic equipment (EEE) to be disposed of at the end of its life as WEEE
