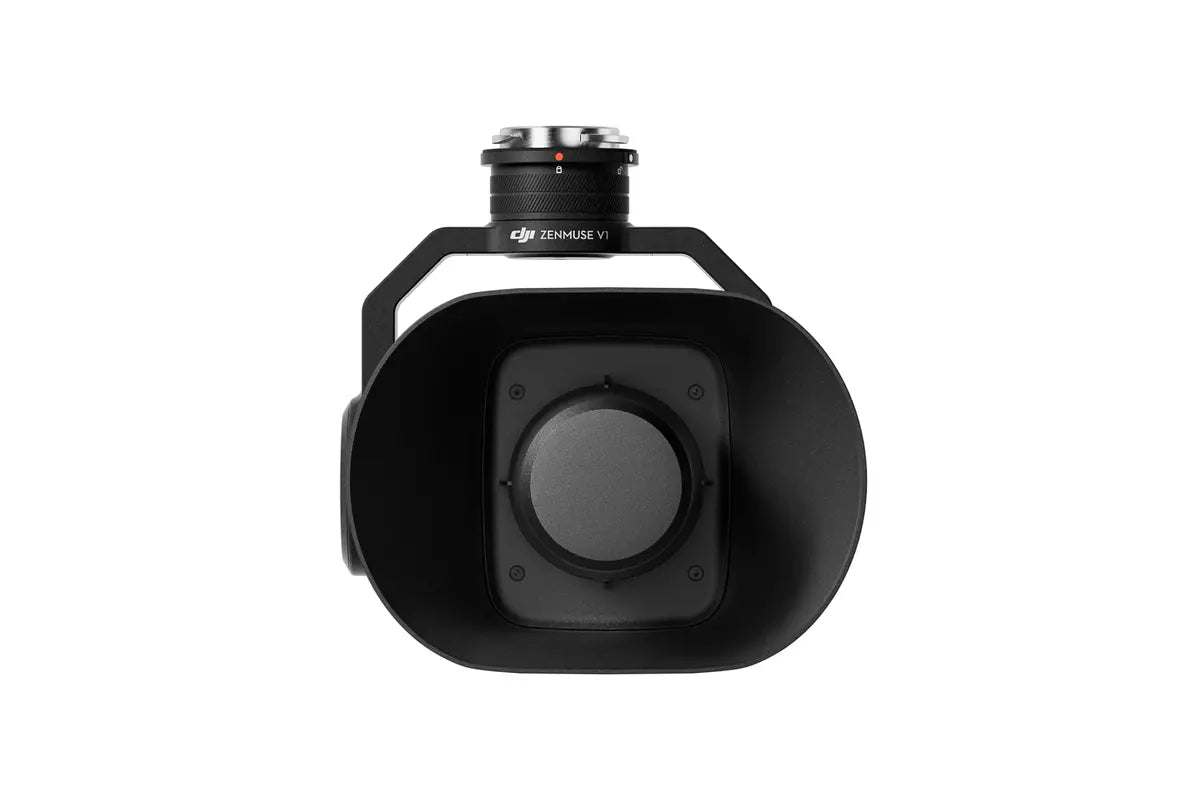

DJI Zenmuse V1: High-Power Tactical Speaker for Public Safety, Emergency Communication and Rescue

The DJI Zenmuse V1 is the first official speaker developed by DJI Enterprise to integrate natively with the DJI Matrice 350 RTK and DJI Matrice 300 RTK multi-payload aerial platforms. Engineered to dominate long-range communications in Public Safety, Search & Rescue, Emergency Management, Civil Protection, and Industrial Inspection missions, this acoustic payload delivers an extraordinary sound pressure of up to 127 dB at 1 meter with an effective transmission range of up to 500-700 meters. Thanks to synchronization with the Zenmuse H20/H30 series camera gimbal, noise suppression, and advanced text-to-speech (TTS) modes, the Zenmuse V1 allows rescue teams and law enforcement to broadcast clear, audible instructions even from great heights.

Key Features and Technological Innovations

Extraordinary Acoustic Power and Long-Range Coverage

• 127 dB Sound Pressure: Generates an extremely high-intensity audio stream capable of overcoming ambient background noise, high-altitude wind, and the noise of the drone's own rotors.
• Range up to 700 Meters: Ensures maximum intelligibility of voice and warning signals from hundreds of meters away, keeping the aircraft at a safe altitude above the operation scene.
• Optimized Frequency Band (800 Hz - 8 kHz): Frequency response specifically designed to emphasize the tones of the human voice and prevent sound dispersion at low frequencies.

Smart Transmission Modes via DJI Pilot 2

• Text-to-Speech (TTS) Voice Synthesis: Allows the operator to type text messages on the remote controller and instantly convert them into spoken audio with adjustable speed and pitch, and continuous loop playback.
• Recording and Live Broadcast: Allows recording voice messages from the DJI RC Plus remote controller microphone using a noise reduction algorithm and broadcasting them in real time on the field.
• Pre-recorded Audio File Playback: Supports uploading MP3, WAV, and AAC files to broadcast emergency messages, standard evacuation procedures, and preset safety announcements.

Gimbal Synchronization and Anti-Howling Technology

• Automatic Camera Tracking: Synchronizes its movements with the optical/thermal cameras mounted in the dual payload to point the sound beam in the exact direction framed by the visual sensor.
• Anti-Howling Algorithm: Eliminates the Larsen effect (acoustic feedback) for always clean audio output, free from distortion and without signal feedback to the operator.

IP54 Construction and Native SkyPort Integration

• IP54 Protection Rating: Designed to operate in adverse weather conditions, resisting dust, rain, and extreme temperatures from -20 °C to +50 °C.
• DJI SkyPort Quick Release: Immediate connection and power supply without external cables or additional batteries, with direct management from the DJI Pilot 2 app on the RC Plus remote controller.

Key Technical Specifications

• Compatible Platforms: DJI Matrice 350 RTK / DJI Matrice 300 RTK (with DJI RC Plus remote controller)
• Maximum Sound Pressure: 127 dB SPL at 1 meter (up to 129 dB on enhanced configurations)
• Audio Operating Distance: 500 m - 700 m
• Rated Power: 30 W
• Impedance: 4 Ω
• Frequency Response: 800 Hz – 8 kHz
• Protection Rating: IP54 (Dust and Water Splash Resistance)
• Dimensions and Weight: 134 × 119 × 140 mm | Weight: 690 ± 10 g
• Audio Modes: Text-to-Speech (TTS), Live Broadcast, Recording Broadcast, MP3/WAV/AAC File Playback
• Mounting Interface: DJI SkyPort v2

DATA SHEET>

PACKAGE CONTENTS

• 1x Zenmuse V1
• 1x Carrying Case
